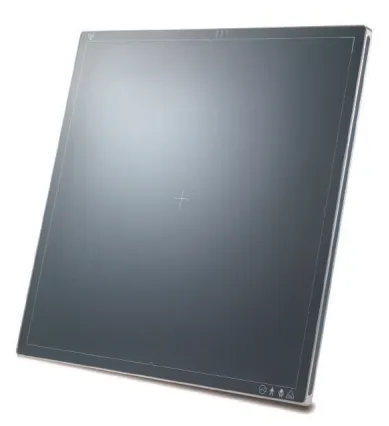

Name: VIVIX-S 17 x 17N Wireless CSI Digital X-ray Panel
SKU: 724234

Multi-purpose Portable Flat Panel Detector for Digital Radiography

VIVIX-S 1717N is Vieworks’ new slim portable flat panel detector for digital radiography with wide active area of 17" x 17". It features Vieworks’ unique wireless communication method, Inside APTM which allows users directly connect to the detector with laptops, tablet PCs and even smart phones. Furthermore, reliable automatic X-ray exposure detection, AnytimeTM enables integration with any kind of X-ray systems. It is a perfect blending of state-ofthe-art technologies in medical engineering, optics, electronics and information technologies with brilliant hardware and software design. Both CsI(1717NA) and GADOX(1717NB) scintillator types are available, with both wired(1717NA/NB) and wireless(1717NAW/NBW) configurations for each scintillator type.

Panel Features

High Image Quality

*Wide active area of 17″ x 17″ *High spatial resolution with 140㎛

Wireless data transmission

*InsideAP™ Fast wireless communication by IEEE 802.11n

Convenient Usability

*VXvueTM Viewer software program operated under WindowsTM

Stable and Reliable AED (Automatic Exposure Detection)

*Needs no connection to an X-Ray Generator Detector *AP Mode or Detector Only Mode

Applications General

Radiography Orthopedic Chiropractic Veterinary

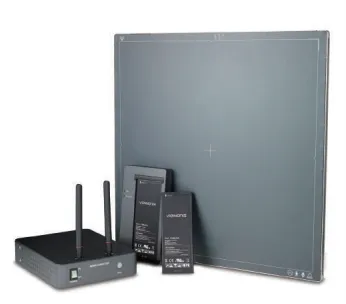

Technical Specifications of the Panel Package

Model Name	FXRD-1717NA / FXRD-1717NB FXRD-1717NAW / FXRD-1717NBW
Technology	a-Si TFT with photodiode
Scintillator	CsI:Tl / Gd2O2S:Tb
Pixel Pitch	140 ㎛
Spatial Resolution	3.5 lp/㎜
Pixels	3072 x 3072 pixels
Image Size	17" x 17" (43.0 ㎝ x 43.0 ㎝)
Grayscale	16 bit
Image Acquisition Time	Wired: 1.5 s Wireless: 3 s
Recommended Cycle Time	15 s
Data Interface	Gigabit Ethernet IEEE 802.11n
X-ray Generator Interface	Line trigger: DR trigger Mode Auto trigger: AED Mode
Dimensions	46.0 ㎝ x 46.0 ㎝ x 1.5 ㎝
Weight	1717NA / 1717NB: 4.2 kg 1717NAW / 1717NBW: 4.5 kg (including battery)
Battery	Lithium Ion 3100 mAh x 2 6 h (Capturing)
Dust and Water Resistant	IP53
X-ray Voltage Range	40 - 150 kVp
Operating Environment	10℃ to 35℃ 30 % to 85 % RH (non-condensing)
Power	DC 24V, 1.0A

* Specifications are subject to change without prior notice.

Workstations Specs

1TB Local Mini-PACS in a RAID 1 (2 Total Drives)
Intel Core i3 Processor 6100 CPU (3.7 GHz)
4GB, Windows 7 Professional 64-bit VXvue Acquisition Software
Monitor: 23″ Touch Screen – Resolution 1920×1080 Ratio: 1000:1
Licensed MIRAssist Bridge 2x1TB (1TB RAID 1)

Warranty

	Five (5) year Panel Manufacturer Warranty
	Three (3) year Computer Acquisition Station and Monitor Warranty from the Manufacturer* *Station and Monitor Warranty plan includes Next Business Day On-site Support from Lenovo

Available Options

SYSTEM OPTIONS

Additional Viewing Licenses
Mobile App for iPad and iPhone
Laptop or Tablet for Mobile Applications
Protective Case with Handle for movable applications

Drop Insurance Coverage

OPTIONAL DROP INSURANCE COVERAGE

Covers damage to the panel caused by an accidental drops
Interest free financing for multi year policies.
Coverage will not be cancelled due to claims.
Pricing is fixed for the duration of the enrollment.
Permanent detector replacement sent directly from the manufacturer.
Coverage is provided for up to (2) occurrences per year.

VXVue Software
The VXVue Acquisition software with Pureimpact ™blends cutting edge technology with a user friendly interface. The software features: easy management for simplified work flow, post-processing algorithm for an efficient diagnosis, various image adjustment tools, a user-friendly touch interface with intuitive GUI, and customizable skins.
